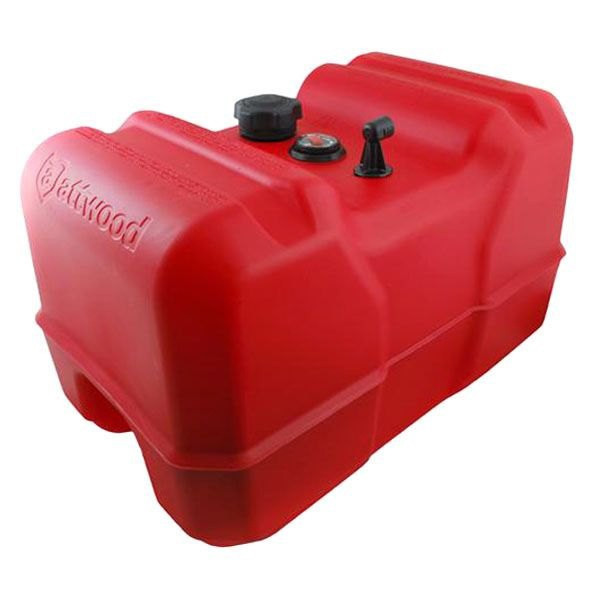

Product Description
Attwood Portable Fuel Tanks are constructed of the same high strength Multi-layer Co-extruded HDPE/EVOH material as found in automotive fuel systems. Attood portable fuel tanks are certified to EPA and CARB standards and include an exclusive ratcheting, automatic low-restriction, high-flow fuel cap that ensures proper fuel flow and engine performance in all conditions. Attwood's exclusive high-flow fuel cap exceeds OEM requirements and reduces wear on fuel pumps improving engine performance and life. Attwood Portable Fuel Tanks are designed for use in all Marine and non-marine small engine applications and will provide years of leak-free performance.Automatic vacuum valve ensures proper fuel fl ow and eliminates the need for manual vent- Automotive Grade multi-layer Co-extruded HDPE/EVOP tank material prevents the evaporation of gasoline saving gas and moneyCompatible with 1/4" NPT fuel fittings
- Robust tank construction the same as found in most automobile fuel systems
- Exclusive no-joint injection molded tank interfaces ensure leak free performance in severe conditions
- Ratcheting cap with tether ensures proper tank closure and prevents accidental cap loss
- Cap includes automatic vacuum valve that eliminates the traditional manual thumb screw and prevents water from leaking into tank
- Cap includes industry leading high-flow automatic vacuum valve with ultra low fuel restriction (less than 1kpa restriction at 50 liters/hour) ensuring proper fuel flow and reducing fuel pump stress.
- High strength Universal Pick Up Tube with standard 1/4" NPT fuel fitting. Compatible with Attwood's new Universal Sprayless Connector (8838US6) and all other standard fuel fittings. Use with self-sealing fuel fittings (such as Attwood Universal Sprayless Connector). Use thread sealant when connecting fittings
- High strength ergonomic handle
- True 12 gallon Liquid Fuel Capacity
- Additional tank capacity for 1:16 2 cycle oil blend (.75 gallons) plus 5% vapor space for fuel thermal expansion
- UV and Ozone resistant
- EPA and CARB Certified
- Built and tested to ABYC H25, ASTM F852 and USCG Standards
- Compatible with Ethanol blended fuels
- Attwood EPA Certified Portable Fuel Tanks meet EPA CFR 40 1060.104 running loss requirements for use with non-marine small engines

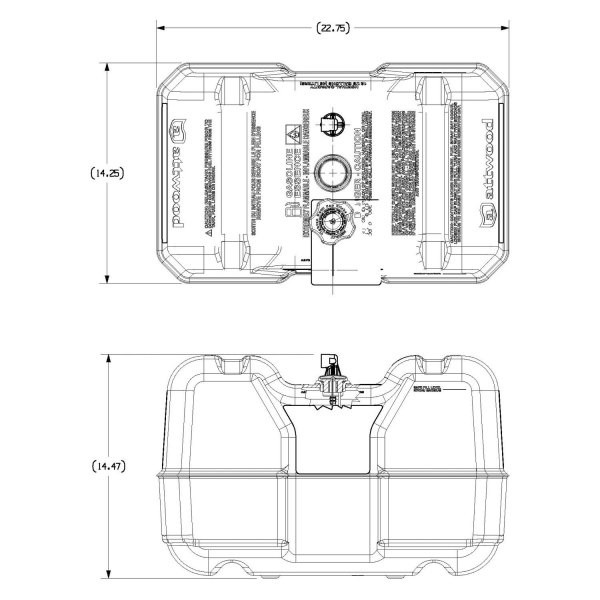

- 24.00"L x 18.00"W x 11.61"H (Low-profile)
Kimpex Data:
- Barcode: 779420294954
- Supplier Number: 8812LPG2
- Kimpex Catalog Number: 764010
Product Videos
Custom Field
Can Type Fuel
Capacity 12 gallons
Support Pack mount not included
Gauge included Yes
Color Red
Number 764010
