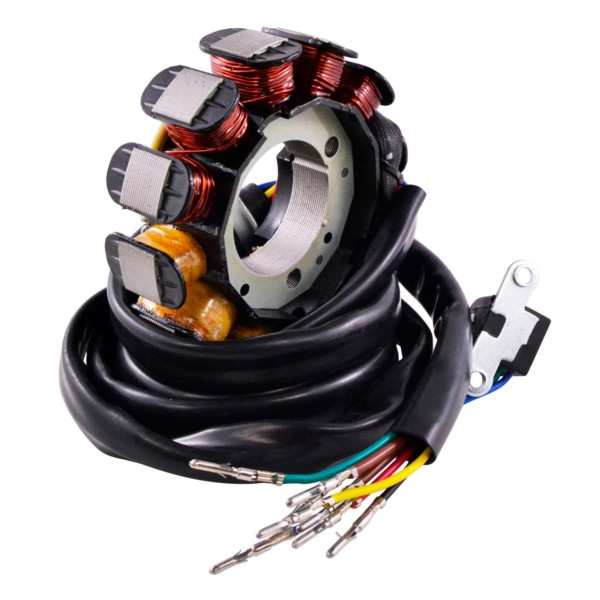

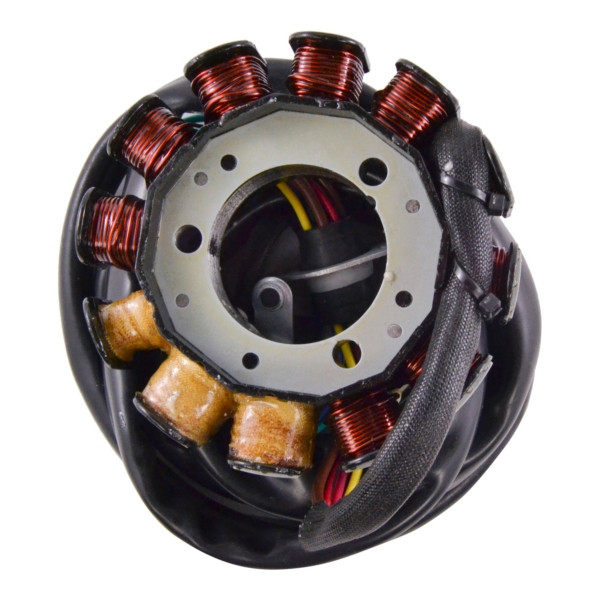

Name: Kimpex HD Stator Fits Kawasaki - 225396 - 225396
Brand: KimpexHD
SKU: 225396
Price: 148 CAD
Availability: InStock

Overview
Reviews

Product Description

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius
Connector included
Rubber grommet included
All products shipped are tested

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Kimpex Data:

Barcode: 779421531744
Supplier Number: SF-010-002668
Kimpex Catalog Number: 225396

Product Data:

Compatible Brand: Fits Kawasaki
Internal Diameter (mm): 42
External Diameter (mm): 104
Thickness (mm): 15.5

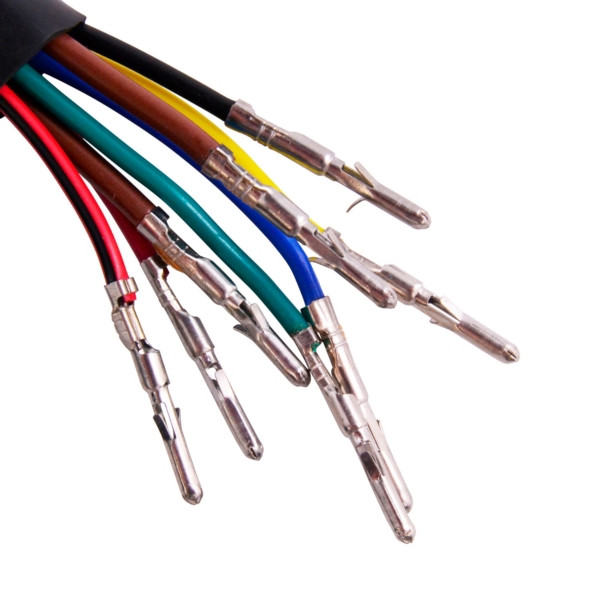

Number of wires: 8
Number of connectors: 2
Number of terminals: 8
Notes: Includes: Connectors
Notes: Includes: Rubber grommet
Notes: Includes: Pick up pulsar
Number: 225396

Product Videos

Custom Field

Compatible Brand Fits Kawasaki

Internal Diameter (mm) 42

External Diameter (mm) 104

Thickness (mm) 15.5

Number of wires 8

Number of connectors 2

Number of terminals 8

Notes Includes: Connectors

Notes Includes: Rubber grommet

Notes Includes: Pick up pulsar

Number 225396

Kimpex-Category Marine (9C)

Make KAWASAKI

Model ZXi 900

HP 900

Year 1996

Year 1997

Year 1995

Model STX 900

Year 1998

Model ZXi 1100

HP 1100

Year 2003

Year 2002

Year 2001

Year 2000

Year 1999

Model STX 1100
